Precision timekeeping is critical for industries like telecommunications, power grids, industrial operations, emergency dispatch/response and finance. It ensures synchronization, prevents costly disruptions, and supports technologies like 5G and AI. Three main oscillator types enable this precision:

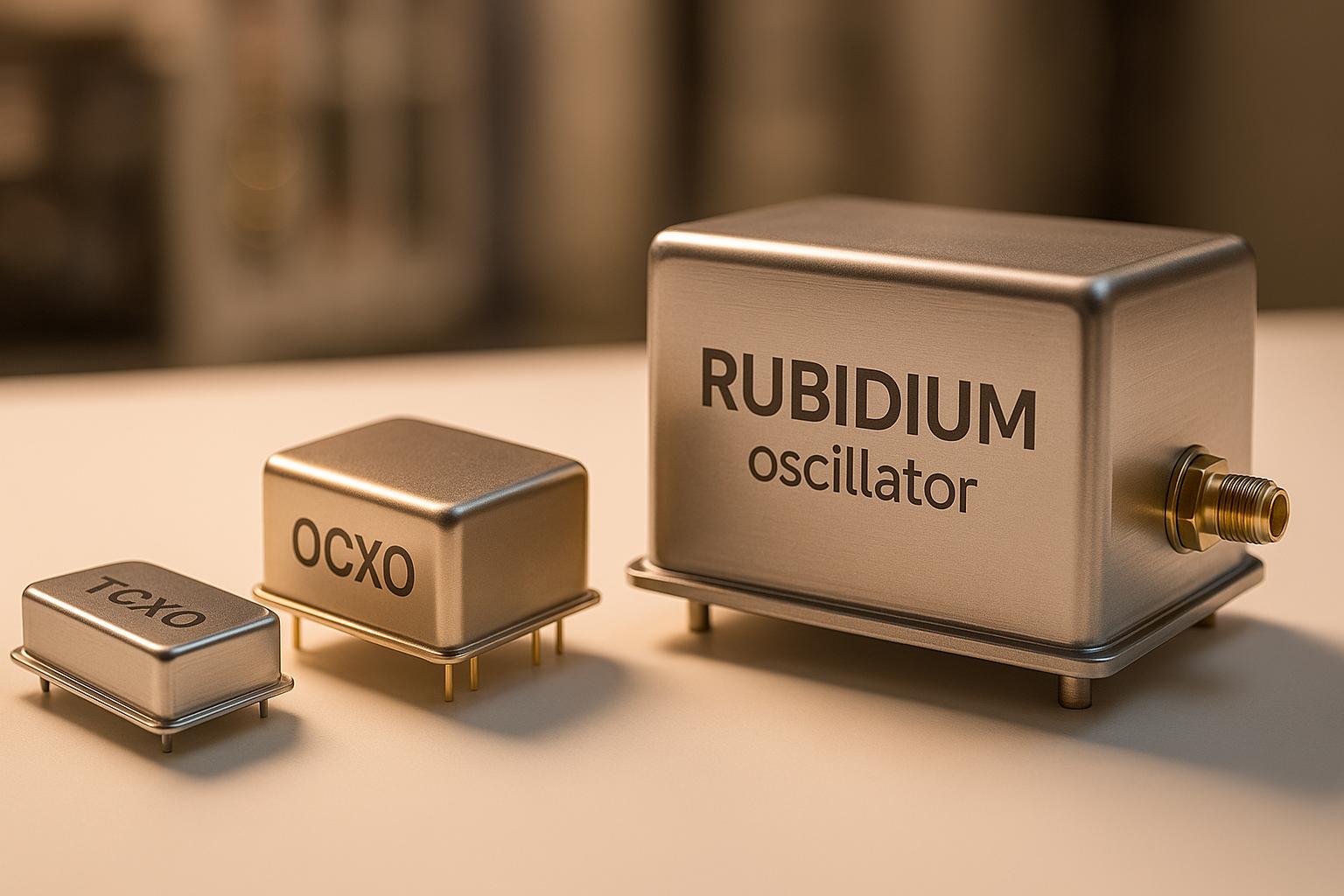

- TCXO (Temperature-Compensated Crystal Oscillator): Affordable, energy-efficient, and stable across temperature changes. Best for IoT, and industrial operations management applications.
- OCXO (Oven-Controlled Crystal Oscillator): Offers higher stability by maintaining a constant temperature. Ideal for 5G, enterprise networks, emergency operations and military applications.
- Rubidium Oscillator: Atomic-level precision with unmatched long-term stability. Used in telecommunications, defense, and scientific research.
Quick Overview:
- TCXOs are cost-effective and compact but less precise.
- OCXOs balance cost and performance with better stability.
- Rubidium oscillators deliver top-tier accuracy at a higher cost and power consumption.
Choosing the right oscillator depends on your precision needs, budget, and power constraints.
Types of Quartz Oscillator
1. TCXO
TCXOs (Temperature-Compensated Crystal Oscillators) are critical for modern network infrastructure, offering exceptional frequency stability through built-in temperature compensation networks.
What sets TCXOs apart is their ability to counteract the natural frequency variations in crystal units caused by temperature changes. While standard crystal oscillators typically achieve frequency stability between ±30 ppm and ±50 ppm, TCXOs elevate performance significantly, achieving stability levels of ±0.1 ppm to ±2.5 ppm across a temperature range of –40°F to +185°F (–40°C to +85°C).
"TCXO oscillators can provide stable clocks at high frequencies in a small footprint, making them well-suited candidates to handle clocking duties for 5G applications." – Randall Scasny, Senior Community Content Specialist, Newark
Stability
One of the standout features of TCXOs is their impressive stability, ranging from 1 ppm to as low as 0.1 ppm. This represents a tenfold improvement over standard crystal oscillators or VCXOs. Thanks to their temperature compensation networks, TCXOs actively adjust for temperature changes, ensuring consistent and reliable performance.
For instance, in wireless sensor networks, TCXOs can reduce synchronization error from ±20 μs to ±3 μs over a 24-hour period. This practical example highlights the real-world advantages of their temperature compensation capabilities.
Temperature Range
TCXOs perform exceptionally well in environments with significant temperature fluctuations, maintaining their accuracy across industrial temperature ranges. Since temperature variations can severely impact oscillator performance, TCXOs’ ability to maintain stability ensures reliable synchronization in challenging conditions.
Power Consumption
Another key advantage of TCXOs is their minimal power consumption. Unlike oven-controlled oscillators, which require continuous heating to maintain stability, TCXOs achieve temperature compensation using passive electronic circuits. This makes them ideal for devices and applications where cost and energy efficiency are a priority over long term holdover reliability.
Applications
TCXOs are indispensable in a variety of industries and applications:
- Telecommunications: In 5G and 4G base stations, TCXOs ensure precise clock synchronization at the nanosecond level, reducing the risk of call drops and data errors.
- Industrial Automation: Multi-device systems like industrial robots depend on TCXOs for precise synchronization, minimizing operational issues.
- Network Infrastructure: TCXOs are used to maintain stable system clocks and data transmission. They also support IEEE 1588 applications.
- Wireless Sensor Networks: TCXOs play a role in industrial automation, fire detection, and environmental monitoring, where consistent synchronization is crucial.
Next, we’ll explore how OCXOs take a different approach to maintaining stability under varying conditions.
2. OCXO
Oven-Controlled Crystal Oscillators (OCXOs) are the gold standard when it comes to quartz oscillators. What sets them apart? Their built-in oven keeps the crystal at a constant temperature, eliminating temperature variations instead of just compensating for them.
"OCXOs (oven-controlled oscillators) offer the pinnacle of performance in timing." – Robin Ash, SiTime
The secret lies in their temperature control system. OCXOs heat the crystal to a stable temperature, typically between 176°F and 230°F (80°C to 110°C). A temperature controller circuit ensures this set point stays within ±1°C (about ±1.8°F) or even tighter tolerances.
Stability
OCXOs are unmatched in terms of stability. They can achieve frequency drift as low as 0.01 ppm/°C and typically stabilize at ±50 ppb or better. Their annual drift rates are equally impressive, with figures as low as 0.01 ppm per year. This makes them perfectly suited for applications requiring extended holdover stability. For example, advanced models offer frequency versus temperature stability exceeding 1.0 ppb across a wide range of −40°F to 185°F (−40°C to +85°C).
Temperature Range
OCXOs are built to handle extreme conditions. Most models operate from −40°F to 185°F (−40°C to +85°C), with some extending up to 221°F (105°C). This wide temperature range makes OCXOs ideal for harsh environments where other oscillators might falter. Traditional quartz-based devices, on the other hand, often degrade when temperatures exceed their rated range by just 7°F to 14°F (4°C to 8°C).
Power Consumption
The precision of OCXOs comes at a cost – higher power consumption. To maintain the internal oven temperature, they require continuous power, consuming more energy than TCXOs. However, modern MEMS-based OCXOs have made strides in reducing both size and power requirements, making them a better fit for power-sensitive applications.
Cost
OCXOs are pricier than TCXOs but still more affordable than rubidium oscillators. This balance of cost and performance makes them a practical choice for applications like standard NTP servers or smaller networks that demand high precision without the premium cost of atomic oscillators.
Applications
OCXOs play a critical role in applications that require precise time and frequency synchronization across networks.
"The OCXO used in 5G base stations is not merely a ‘crystal oscillator’, but a core component that quietly supports overall network stability and communication quality behind the scenes." – NDK
They are indispensable in telecommunications infrastructure, including 5G radio units, small cells, SyncE, IEEE 1588, switches, routers, SONET, and OTN applications. Their ability to deliver stable frequency performance even in fluctuating ambient conditions is crucial.
OCXOs are also vital in areas like military communications, cellular networks, and scientific instruments. They ensure precise timing even during clock source failures, making them a cornerstone of modern network infrastructure.
Next, we’ll explore how rubidium oscillators take precision timekeeping to the next level with atomic resonance.
sbb-itb-f59d864
3. Rubidium Oscillators
As networks grow more complex, the demand for highly reliable timekeeping solutions becomes unavoidable. When atomic-level precision is needed, rubidium oscillators step in as a powerful alternative to OCXOs.
Rubidium oscillators achieve extraordinary accuracy by functioning as atomic clocks. Unlike quartz-based oscillators, which depend on the piezoelectric properties of quartz crystals, rubidium oscillators use the vibrations of rubidium atoms for timekeeping. This reliance on atomic resonance ensures superior stability and precision.
Their standout performance is rooted in atomic transitions within rubidium atoms, which make them nearly immune to temperature fluctuations.
Stability
Rubidium oscillators are known for their exceptional long-term stability. Their frequency stability ranges from 10^-11 to 10^-12 ppm per day, far surpassing that of OCXOs. Key performance metrics include:
- Accuracy per year: 5 x 10^-10 (compared to 1 x 10^-8 for OCXOs).
- Aging per year: 2 x 10^-10 (OCXOs: 6 x 10^-9).
- Temperature stability: 3 x 10^-10 over their operating range.
This level of stability makes rubidium oscillators ideal for applications requiring extremely long holdover periods, where precise timing must be maintained even without an external reference signal. While OCXOs excel in short-term to medium term holdover scenarios, rubidium oscillators dominate when long-term accuracy is critical.
Temperature Range
Rubidium oscillators perform reliably across a wide temperature range, from –67°F to 154°F (–55°C to +68°C). Some models are designed for even harsher conditions, operating between –40°F and 185°F (–40°C to +85°C).
Power Consumption
Atomic-level precision comes with a trade-off: higher power consumption. Rubidium oscillators typically draw around 20 watts, significantly more than the 0.25 to 4 watts used by OCXOs. However, ongoing advancements have reduced their size and power requirements .
Cost
The precision of rubidium oscillators comes at a price. They add approximately $2,000 to $5,000 to equipment cost compared to OCXOs. Despite the higher upfront cost, their long-term accuracy and reliability make them a smart choice for applications where extended timing precision is paramount.
Applications
Rubidium oscillators play a vital role in environments where nanosecond-level precision is non-negotiable. They serve as a stable time and frequency reference for both mobile and wired telecommunications networks. Their ability to maintain synchronization makes them indispensable in several fields:
- Telecommunications: Rubidium oscillators are integral to 5G and LTE networks, ensuring the precise timing required for cellular networks.
- Defense and Military: Ruggedized rubidium oscillators, such as Safran Navigation & Timing’s mRO-50, available in the SecureSync 2400, provide accurate frequency and atomic time synchronization in challenging environments. These devices are crucial for military radios and systems operating in GNSS-degraded or denied areas. With an operating range of –40°F to 176°F (–40°C to +80°C), they are suited for demanding applications in underwater systems, radar, electronic warfare, and even low Earth orbit.
- Scientific and Research: Rubidium oscillators are also used in navigation systems, broadcasting, seismic studies, calibration equipment, and various scientific research projects .
These features make rubidium oscillators a cornerstone of modern telecommunications, defense, and research infrastructure. Their ability to deliver precise, long-term timing ensures their relevance in a range of critical applications.
Advantages and Disadvantages
Different types of oscillators come with their own sets of strengths and weaknesses. Knowing these key differences can help network professionals choose the right one for their specific needs.
TCXOs are known for being budget-friendly and energy-efficient, with prices typically under $10 per unit. They provide temperature stability ranging from ±0.20 ppm to ±2.0 ppm, making them a good fit for devices like GPS systems, base stations, and IoT networks. However, their stability might not meet the demands of applications requiring extreme precision.
OCXOs offer a middle ground between performance and practicality. They use an internal oven to keep the crystal at a constant temperature, allowing for much better stability – between ±1 x 10⁻⁷ and ±1 x 10⁻⁹, which is about ten times better than TCXOs. This improved stability comes with trade-offs: higher power consumption (1.5 to 2.0 watts at 77°F) and a higher cost.
Rubidium oscillators take precision to the next level, achieving long-term stability through atomic resonance. They maintain stability as fine as 10⁻¹¹ to 10⁻¹² ppm per day and are nearly immune to temperature fluctuations. These features make them ideal for telecommunications and scientific research. However, they require significantly more power (about 20 watts) and are far more expensive.
Here’s a quick comparison of their key characteristics:
| Parameter | TCXO | OCXO | Rubidium |
|---|---|---|---|
| Temperature Stability | ±0.20 ppm to ±2.0 ppm | ±1 x 10⁻⁷ to ±1 x 10⁻⁹ | 10⁻¹¹ to 10⁻¹² ppm/day |
| Power Consumption | Low | 1.5–2.0 watts | ~20 watts |
| Temperature Range | –40°F to 185°F (-40°C to +85°C) | –40°F to 185°F (-40°C to +85°C) | Insensitive to temperature |
| Best Applications | Manufacturing & Industrial, IoT networks | Military and precision applications, telecommunications, | GPS/GNSS limited or denied applications scientific research |
Other factors may also influence your decision such as warm-up time, and aging rates. When it comes to warm-up times, OCXOs take about four minutes to stabilize, while rubidium oscillators are ready in around three minutes. Additionally, OCXOs experience aging at rates between 0.20 ppm/year and 2.0×10⁻⁸/year, whereas rubidium oscillators age much more slowly at 2 x 10⁻¹⁰ per year, ensuring long-lasting precision that’s essential for maintaining network reliability.
FAQs
How can I choose the right oscillator for my industry needs?
Selecting the right oscillator comes down to your specific needs for stability, precision, and the conditions it will operate under. Let’s break it down:
- TCXO (Temperature-Compensated Crystal Oscillator): A great choice when you need decent stability at a reasonable cost. These are commonly used in IT network timing and manufacturing applications because they strike a balance between performance and affordability.
- OCXO (Oven-Controlled Crystal Oscillator): Known for their superior stability, OCXOs are often found in precision timing applications like enterprise and telecommunications network infrastructure and test equipment. They thrive in controlled environments where consistent performance is critical.
- Rubidium Oscillators: If you’re after top-tier stability and long-term accuracy, Rubidium oscillators are your go-to. They’re built for high-stakes use cases like satellite communications, military operations, and advanced scientific research.
When making your choice, think about the environmental conditions and the performance requirements of your application. For instance, OCXOs perform best in stable environments, while Rubidium oscillators shine in situations demanding extreme precision over extended periods.
What are the differences in precision and power consumption among TCXO, OCXO, and Rubidium oscillators?
TCXO oscillators stand out for their low power usage and energy-saving features, making them a great fit for situations where conserving power is essential. That said, their moderate precision might not be sufficient for highly demanding timekeeping systems.
OCXO oscillators, on the other hand, offer greater stability and accuracy, making them ideal for applications that require precise time synchronization. The trade-off? They consume more power, which can be a concern in energy-sensitive setups.
Rubidium oscillators take precision to the next level, rivaling atomic clocks in their ultra-high accuracy. This makes them a top choice for applications where precision is non-negotiable. However, they tend to be power-hungry and complex, limiting their practicality to specialized uses where accuracy outweighs other considerations.
Why is temperature stability important for oscillators, and how does it impact their precision and reliability?
Temperature stability plays a key role in the performance of oscillators. Fluctuations in temperature can cause frequency drift, which impacts the accuracy of timekeeping and synchronization. Since oscillators depend on components like quartz crystals that are highly sensitive to temperature changes, any instability can interfere with the precision needed for critical applications, including 5G networks, industrial IoT, and automotive radar systems.
When oscillators maintain a steady frequency output despite temperature variations, they deliver dependable performance even in challenging conditions. This reliability is what makes them essential for systems that demand precise timing, such as communication networks and other infrastructure critical to modern technology.
